Wat kan een panoramische camera allemaal

360-gradenbeeld en multidirectionele bewaking

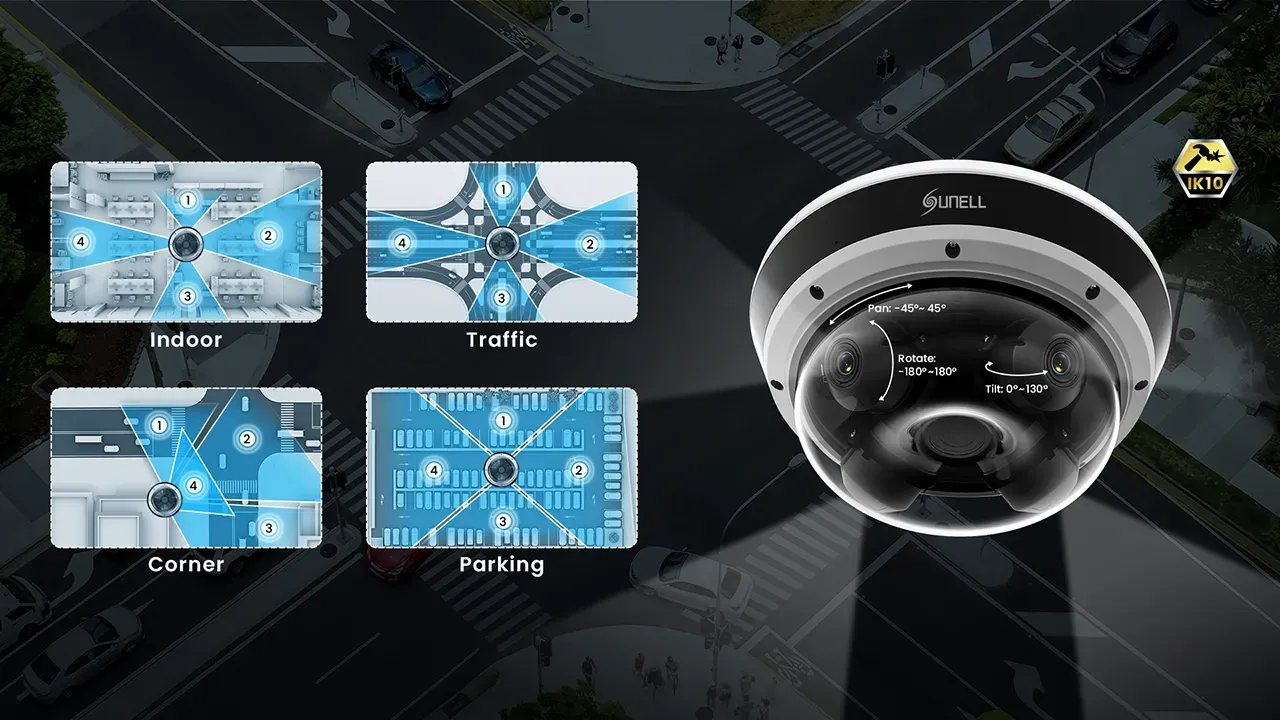

Deze multisensorcamera is uitgerust met vier verstelbare, krachtige sensoren die een uitzonderlijk multidirectioneel beeld van 20MP/32MP leveren. Elke lens kan onafhankelijk worden versteld om scherpe beelden vanuit verschillende hoeken vast te leggen, waardoor een complete dekking voor diverse omgevingen wordt gegarandeerd. Dit resulteert in minder installatiepunten en aanpasbaarheid aan complexe situaties, wat uiteindelijk tot kostenbesparingen leidt.













Learn more

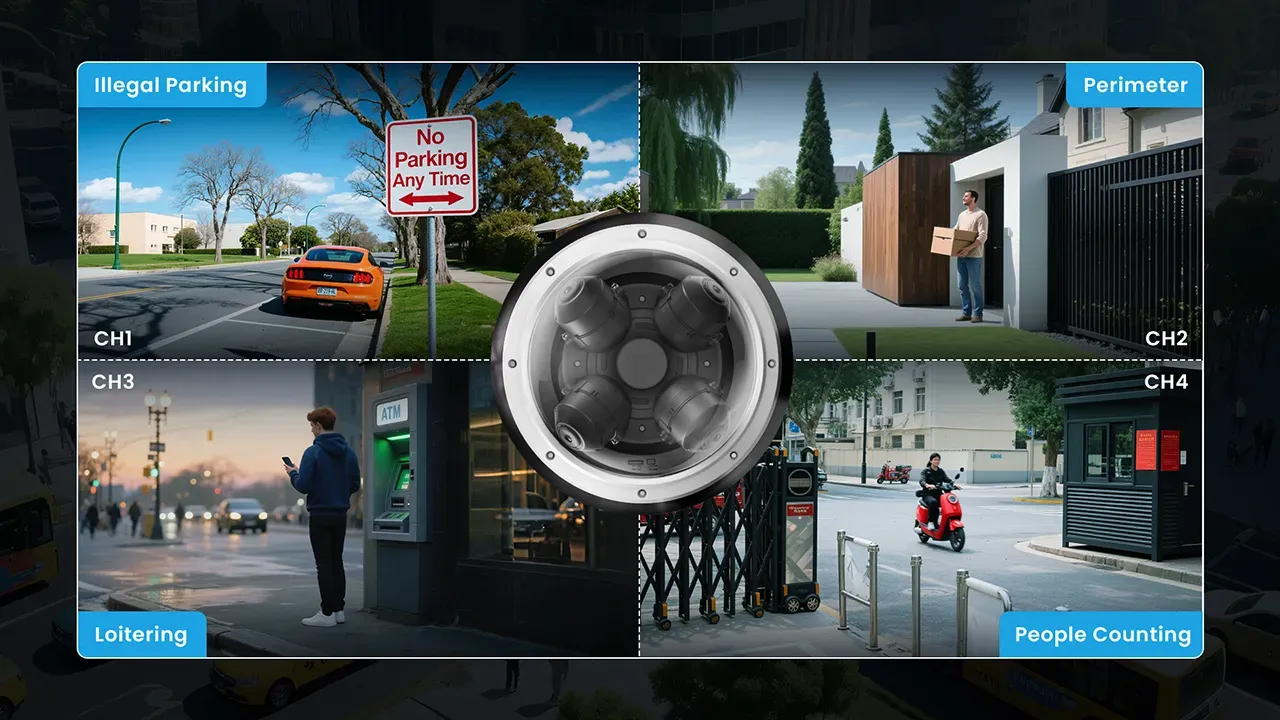

4-kanalen AI voor de uitvoering van diverse taken


Deze camera, aangedreven door een geavanceerde AI SoC-chip, ondersteunt vier onafhankelijke AI-analysekanalen, waardoor gelijktijdige uitvoering van taken zoals objectdetectie, inbraakdetectie en personentelling mogelijk is. Dit intelligente ontwerp verbetert de operationele efficiëntie en vereenvoudigt de implementatie.


Learn more

Horizontaal 192°, verticaal 80°, 4K groothoek panoramisch beeld


Ervaar een echt panoramisch beeld! De camera met dubbele sensor biedt een maximaal breed panoramisch beeld van 192° en een verticaal beeldveld van 80°, met een ultragroothoeklens in 4K voor het vastleggen van verbluffende details. Dankzij dynamische stitching-technologie ondersteunt de camera slimme dubbele licht- en geluidsalarmen, waardoor het dekkingsgebied wordt vergroot en intelligente bewaking wordt verbeterd.


Learn more

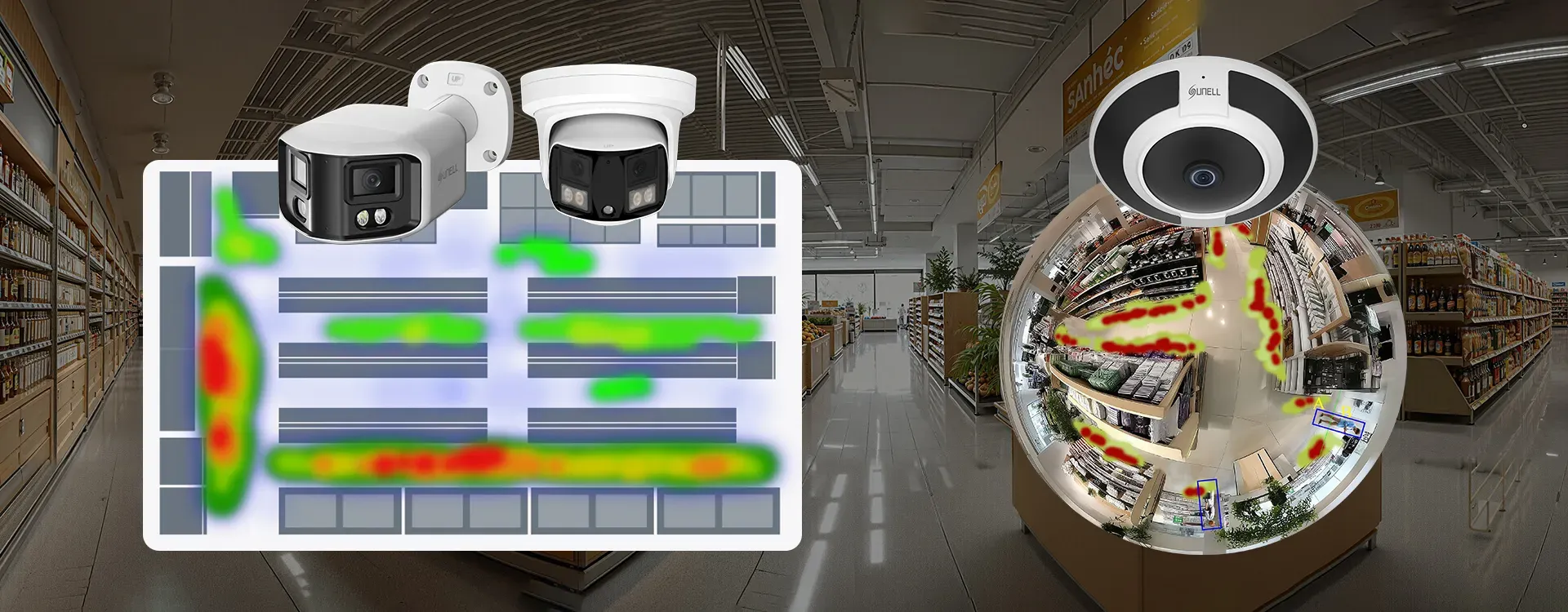

Heatmap van gedragspatronen voor verbeterde zakelijke inzichten.


De heatmap van gedragspatronen gaat verder dan traditionele beveiliging en biedt een diepgaande analyse van klantgedragspatronen. Door drukbezochte gebieden en frequente bewegingen te visualiseren, biedt het waardevolle inzichten die de besluitvorming en operationele efficiëntie verbeteren.


Learn more

4 × 8MP 4-Directional Multi-sensor Network Camera

SNIPP8087RARVZ


  • Four 8MP 1/2.8" STARVIS CMOS image sensor
  • 4 adjustable lenses in one camera, each lens up to 8 MP (3840 × 2160) @25/30 fps
  • 2.7 to 13.5 mm motorized lens
  • True WDR, 3D DNR, ROI, HLC, BLC, Defog
  • Support face, human, vehicle detection and capture
  • Intelligent analytics: intrusion, single line crossing, double line crossing, loitering, wrong-way, illegal parking, enter area, leave area, and smart motion detection and people counting
  • Built-in microphone, 1/1 audio in/out, 4/2 alarm in/out
  • Built-in SD card slot, up to 1TB
  • Smart IR distance up to 40 m
  • IP67, IK10


Cyber Security:


FIPS140-3   TPM   Secure Boot   HTTPS   Port Security   Backup&Recovery   Strong password enforcement   Vulnerabilitry   Management  | User Permission Grading.


Ultra Multi Sensor Camera

SNIPP8058RARVZ


  •  Four 5MP 1/2.8" STARVIS CMOS image sensor
  • 4 adjustable lenses in one camera, each lens up to 5 MP (2592 × 1944) @25/30 fps
  • 2.7 to 13.5 mm motorized lens
  • True WDR, 3D DNR, ROI, HLC, BLC, Defog
  • Support face, human, vehicle detection and capture
  • Intelligent analytics: intrusion, single line crossing, double line crossing, loitering, wrong-way, illegal parking, enter area, leave area, and smart motion detection and people counting
  • Built-in microphone, 1/1 audio in/out, 4/2 alarm in/out
  • Built-in SD card slot, up to 1TB
  • Smart IR distance up to 40 m
  • IP67, IK10


Accessoires:


  • SNCBK506A Wall Bracket
  • SNBK348A Ceiling Bracket
  • SNBK605 Corner Mount
  • SNBK604B Pole Mount
  • SNBK367 Junction Box
  • SNBK358 Corner Mount
  • SNBK359 Pole Mount


Cyber Security:


FIPS140-3   TPM   Secure Boot   HTTPS   Port Security   Backup&Recovery   Strong password enforcement   Vulnerabilitry   Management  | User Permission Grading.



Ultra 8MP Smart Dual  180° Panoramic Bullet Camera

SNIPP8085QASB


  •  2×5MP 1/2.8” STARVIS™ CMOS
  • Output 180° wide angle splicing image
  • Outputs max. 8MP (4608×1728)@15 fps, and supports 2592×1944 @15fps
  • Support human and vehicle detection and capture
  • Intelligent analysis: intrusion, single line crossing, double line crossing, loitering, wrong-way, smart motion detection, people counting and heat map
  • True WDR, 3D DNR, ROI, Defog, HLC
  • Built-in warm light and IR light, the max. illumination distance up to 30m (98.4ft)
  • Audio: 1ch in,1ch out; built-in Mic and speaker; support two-way talk
  • Alarm: 1ch in,1ch out; built-in SD card slot, up to 1TB
  • IP66


Accessoires:


  • SNCBK656A Junctionbox
  • SNCBK627D Polebracket


Cyber Security:


FIPS140-3   TPM   Secure Boot   HTTPS   Port Security   Backup&Recovery   Strong password enforcement   Vulnerabilitry   Management  | User Permission Grading.



Ultra 8MP Smart Dual  180° Panoramic Bullet Camera

SNIPP8086QASB


  •  2×5MP 1/2.8” STARVIS™ CMOS
  • Output 180° wide angle splicing image
  • Outputs max. 8MP (4608×1728)@15 fps, and supports 2592×1944 @15fps
  • Support human and vehicle detection and capture
  • Intelligent analysis: intrusion, single line crossing, double line crossing, loitering, wrong-way, smart motion detection, people counting and heat map
  • True WDR, 3D DNR, ROI, Defog, HLC
  • Built-in warm light and IR light, the max. illumination distance up to 30m (98.4ft)
  • Audio: 1ch in,1ch out; built-in Mic and speaker; support two-way talk
  • Alarm: 1ch in,1ch out; built-in SD card slot, up to 1TB
  • IP66


Accessoires:


  • SNCBK656A Junctionbox
  • SNCBK627D Polebracket


Cyber Security:


FIPS140-3   TPM   Secure Boot   HTTPS   Port Security   Backup&Recovery   Strong password enforcement   Vulnerabilitry   Management  | User Permission Grading.



Ultra 8MP Smart Dual  180° Panoramic Turret Camera

SNIPP8086MEACB


  •  2×5MP 1/2.8” STARVIS™ CMOS
  • Output 190° wide angle splicing image
  • 2.4mm/F1.6
  • H: 192.4° , V: 80.2°
  • Outputs max. 8MP (4224×1848)@25/30 fps, and supports 2592×1944 @25/30fps
  • Support human and vehicle detection and capture
  • Intelligent analysis: intrusion, single line crossing, double line crossing, loitering, wrong-way, people counting, smart motion detection and heat map
  • True WDR, 3D DNR, ROI, Defog, HLC
  • Built-in warm light and IR light, the max. illumination distance up to 30m (98.4ft)
  • Built-in red and blue warning light, support sound-light warning
  • Built-in microphone and speaker, 1/1 audio in/out, 1/1 alarm in/out
  • Built-in SD card slot, up to 1TB
  • IP66


Accessoires:


  • SNCBK649G Junctionbox
  • SNCBK206 Pendant Cap
  • SNCBK402 Ceiling Mount
  • SNCBK501 Wall Mount
  • SNCBK502 Wall Mount
  • SNCBK101 Pole Mount
  • SNCBK102 Corner Mount


Cyber Security:


FIPS140-3   TPM   Secure Boot   HTTPS   Port Security   Backup&Recovery   Strong password enforcement   Vulnerabilitry   Management  | User Permission Grading



Ultra 5MP Smart Dual  180° Panoramic Turret Camera

SNIPP8056MEACB


  •  2×5MP 1/2.8” STARVIS™ CMOS
  • Output 190° wide angle splicing image
  • 2.4mm/F1.6
  • H: 192.4° , V: 80.2°
  • Outputs max. 8MP (4224×1848)@25/30 fps, and supports 2592×1944 @25/30fps
  • Support human and vehicle detection and capture
  • Intelligent analysis: intrusion, single line crossing, double line crossing, loitering, wrong-way, people counting, smart motion detection and heat map
  • True WDR, 3D DNR, ROI, Defog, HLC
  • Built-in warm light and IR light, the max. illumination distance up to 30m (98.4ft)
  • Built-in red and blue warning light, support sound-light warning
  • Built-in microphone and speaker, 1/1 audio in/out, 1/1 alarm in/out
  • Built-in SD card slot, up to 1TB
  • IP66


Accessoires:


  • SNCBK649G Junctionbox
  • SNCBK206 Pendant Cap
  • SNCBK402 Ceiling Mount
  • SNCBK501 Wall Mount
  • SNCBK502 Wall Mount
  • SNCBK101 Pole Mount
  • SNCBK102 Corner Mount


Cyber Security:


FIPS140-3   TPM   Secure Boot   HTTPS   Port Security   Backup&Recovery   Strong password enforcement   Vulnerabilitry   Management  | User Permission Grading



Ultra 12.0 Megapixel FisheyeCamera

SNIPV8088ECARB



  • 1/1.7”12MP STARVIS™ CMOS
  • 25fps @ 12MP(4000×3000)

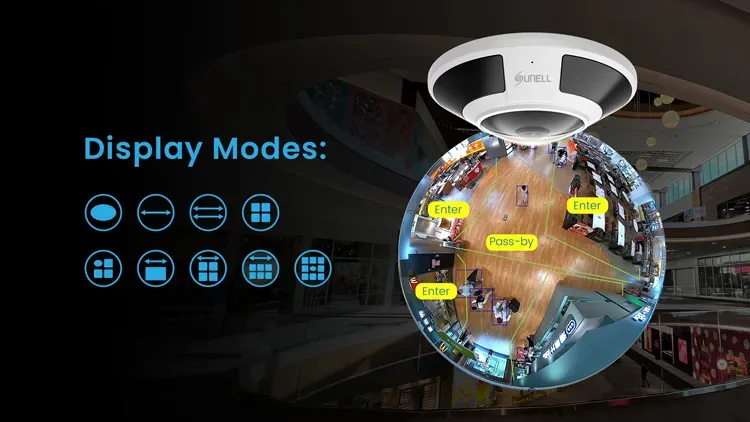

  • Multi Dewarping modes and front end image correction
  • Support face, human, vehicle detection and capture
  • Intelligent analytics: intrusion, single line crossing, double line crossing, loitering, wrong-way, people counting, smart motion detection and heat map
  • DWDR, 3D DNR, ROI, Defog, HLC
  • Built-in microphone
  • Smart IR distance up to 15 m
  • IP66


Accessoires:


  • SNCBK201A Bracket Mount Adapter
  • SNBK645E JunctionBox
  • SNBK402 Pendant Mount Bracket
  • SNBK501 Wall Bracket
  • SNBK502 Wall Mount Bracket
  • SNBK101 Pole Mount

Ultra 6.0 Megapixel FisheyeCamera

SNIPV8060ECARB


  •  1/2.8” progressive scan CMOS
  • 25/30fps @ 6MP(2560×2560)
  • Multi Dewarping modes and front end image correction
  • Support face, human, vehicle detection and capture
  • Intelligent analytics: intrusion, single line crossing, double line crossing, loitering, wrong-way, people counting, smart motion detection and heat map
  • True WDR, 3D DNR, ROI, Defog, HLC
  • Built-in microphone
  • Smart IR distance up to 15 m
  • IP66


Accessoires:


  • SNCBK201A Bracket Mount Adapter
  • SNBK645E JunctionBox
  • SNBK402 Pendant Mount Bracket
  • SNBK501 Wall Bracket
  • SNBK502 Wall Mount Bracket
  • SNBK101 Pole Mount

5MP 180° Panoramic Smart Dual Light Bullet Network Camera


SNIPR8152KKACB


  • 1/2.7” progressive scan CMOS
  • Max. 5MP(2880×1620) @25/30fps resolution
  • Support human and vehicle detection and capture
  • Intelligent analytics: Intrusion, smart motion detection, single line crossing, double line crossing, loitering, wrong-way detection, area people limit, illegal parking, perimeter detection, people counting, and heat map.
  • Built-in red and blue strobe lights with audio-visual alarm linkage.
  • Built-in IR and warm LEDs, illumination distance up to 25 m.
  • Built-in Mic and speaker; support two-way audio.
  • Alarm: 1ch in,1ch out; built-in microSD card slot (up to 1TB)
  • IP66 protection


Accessoires:


  • SNCBK656A JunctionBox
  • SNCBK627D Pole Mount

5MP 180° Panoramic Smart Dual Light Bullet Network Camera


SNIPR8152MCACB


  • 1/2.7” progressive scan CMOS
  • Max. 5MP(2880×1620) @25/30fps resolution
  • Support face, human and vehicle detection and capture
  • Intelligent analytics: Intrusion, smart motion detection, single line crossing, double line crossing, loitering, wrong-way detection, area people limit, illegal parking, perimeter detection, people counting, and heat map.
  • Built-in red and blue strobe lights with audio-visual alarm linkage.
  • Built-in IR and warm LEDs, illumination distance up to 25 m.
  • Built-in Mic and speaker; support two-way audio.
  • Alarm: 1ch in, 1ch out; built-in microSD card slot (up to 1 TB).
  • IP66 protection


Accessoires:


  • SNCBK656A JunctionBox
  • SNCBK627D Pole Mount

Onze Certificeringen

NDAA  FIPS140-2  TüV/GS   IS09001   CE  FCC  EAC  DGüV  LGC  VDS  TAPA
