Thermische Bullet Camera's

Bullet Thermal Camera combineert beeld- en cameratechnologie van wereldklasse met innovatieve IP-netwerktechnologie. Ze helpen mensen met een hoge lichaamstemperatuur snel en contactloos te identificeren.

Fixed Thermal Thermal Camera 384 x 288 Human & Vehicle Detection

SNTPC4107KTF

  • VOx uncooled focal plane detector with 384×288 resolution
  • NETD ≤ 40mK
  • 9/15/25/35/50mm fixed lens optional

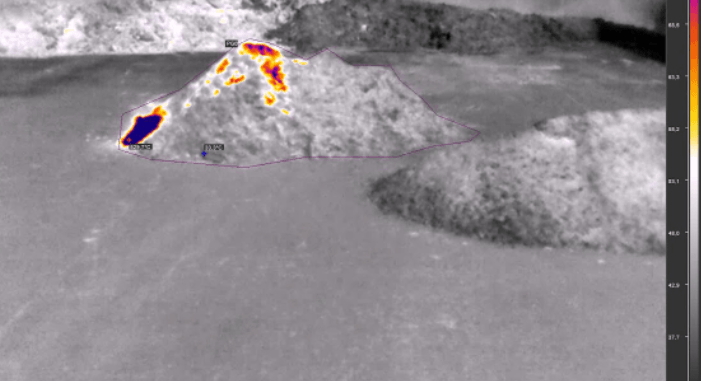

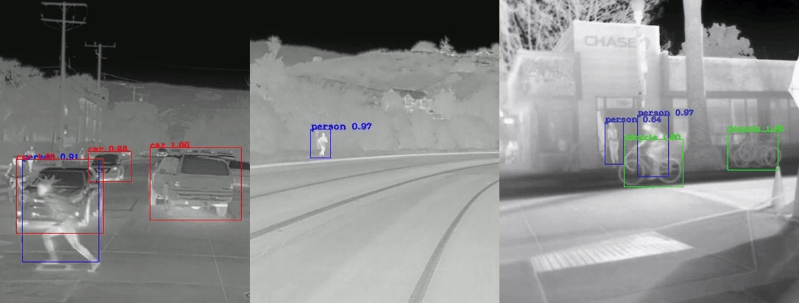

  • Supports human and vehicle detection, as well as smoking and fire point detection.

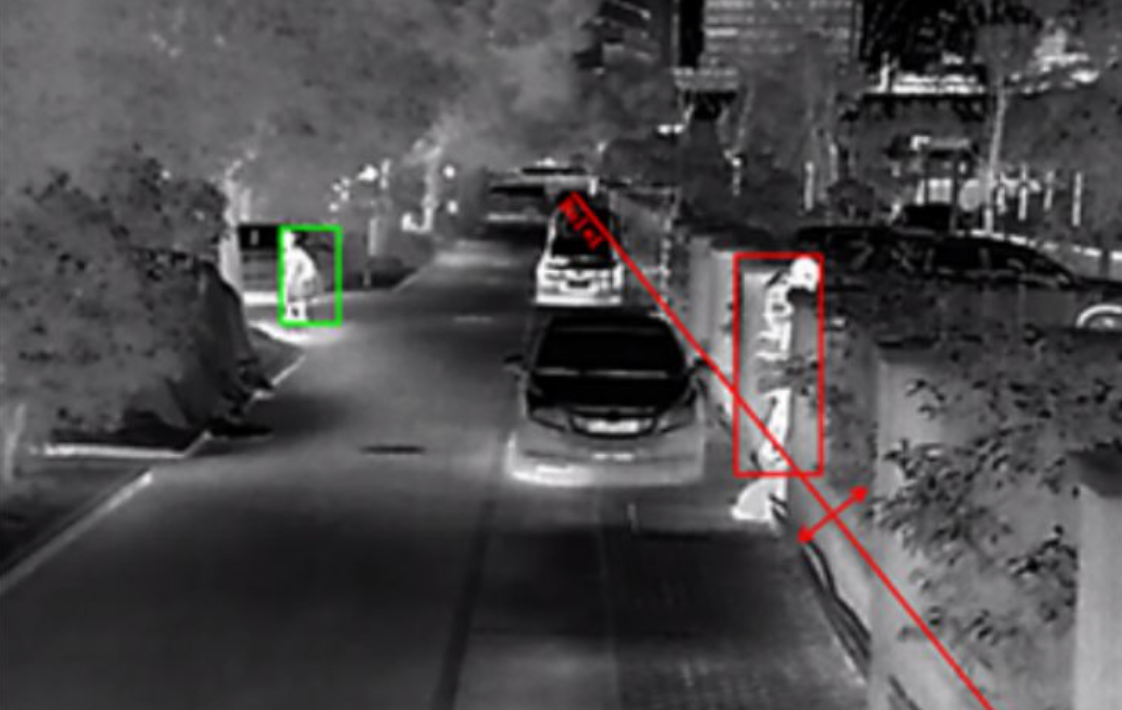

  • Intelligent Analytics: intrusion, single line crossing, double line crossing, loitering, wrong-way detection, enter area, leave area, and people counting.

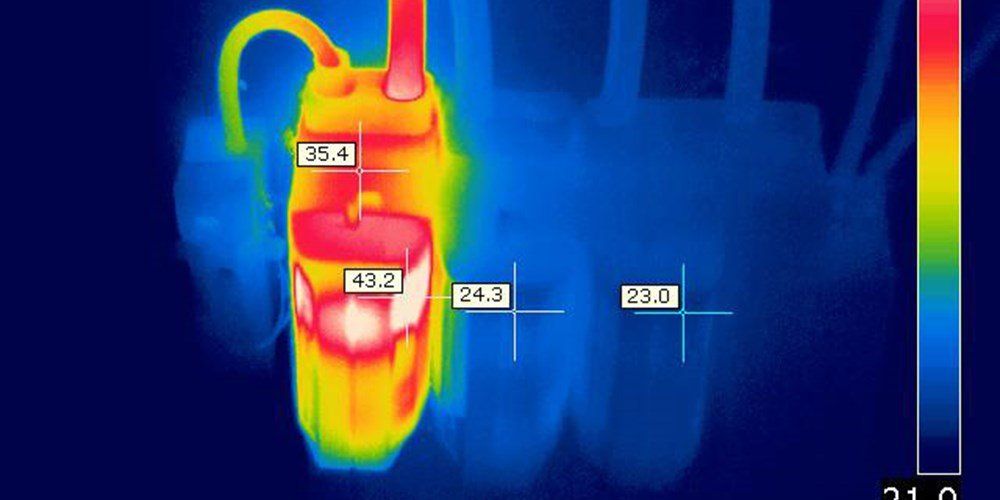

  • Support 3 temperature measurement rule types (spot, line, area)
  • Temperature measurement range: -20°C to 150°C (-4°F to 302°F)
  • Accuracy: ±2°C / ±2%
  • Support 12VDC/24VAC/PoE power supply
  • NDAA Compliance,
  • IP66



Accessoires:


SNCBK101A Polemount

SNCBK102A Corner Mount


Detection Humans(1.8x0.5mtr) 235mtr

Detection Vehicles(4x1.5mtr) 722mtr

Recognition Humans(1.8x0.5mtr) 59mtr

Recognition Vehicle(4x1.5mtr) 180mtr

Detection Fire(0.2x0.2.mtr)  47 mtr

Detection Fire(1x1 mtr) 235 mtr



Fixed Thermal Thermal Camera 384 x 288 Human & Vehicle Detection

SNTPC4207KTF


  • VOx uncooled focal plane detector with 384×288 resolution
  • NETD ≤ 40mK
  • 9/15/25/35/50mm fixed lens optional
  • Supports human and vehicle detection, as well as smoking and fire point detection.
  • Intelligent Analytics: intrusion, single line crossing, double line crossing, loitering, wrong-way detection, enter area, leave area, and people counting.
  • Support 3 temperature measurement rule types (spot, line, area)
  • Temperature range: -20°C to 150°C or 0°C to 550°C, Accuracy: ±2°C / ±2%
  • Built-in mic and speaker, support two-way audio
  • Support 12VDC/24VAC/PoE power supply
  • NDAA Compliance,
  • IP66


Accessoires:


  • SNCBK101A Polemount
  • SNCBK102A Corner Mount


Detection Humans(1.8x0.5mtr) 235mtr

Detection Vehicles(4x1.5mtr) 722mtr

Recognition Humans(1.8x0.5mtr) 59mtr

Recognition Vehicle(4x1.5mtr) 180mtr

Detection Fire(0.2x0.2.mtr)  47 mtr

Detection Fire(1x1 mtr) 235 mtr










Fixed Thermal Thermal Camera 640 x 512 Human & Vehicle Detection

SNTPC6406KTF


  • VOx uncooled focal plane detector with 384×288 resolution
  • NETD ≤ 40mK
  • 9/15/25/35/50mm fixed lens optional
  • Supports human and vehicle detection, as well as smoking and fire point detection.
  • Intelligent Analytics: intrusion, single line crossing, double line crossing, loitering, wrong-way detection, enter area, leave area, and people counting.
  • Support 3 temperature measurement rule types (spot, line, area)
  • Temperature range: -20°C to 150°C or 0°C to 550°C, Accuracy: ±2°C / ±2%
  • Built-in mic and speaker, support two-way audio
  • Support 12VDC/24VAC/PoE power supply
  • NDAA Compliance,IP66


Accessoires:


  • SNCBK101A Polemount
  • SNCBK102A Corner Mount


Detection Humans(1.8x0.5mtr) 375mtr

Detection Vehicles(4x1.5mtr) 1.150mtr

Recognition Humans(1.8x0.5mtr) 94mtr

Recognition Vehicle(4x1.5mtr) 288mtr

Identification Humans(1.8x0.5.mtr)  47 mtr

Identification Vehicles(4x1,5 mtr) 144 mtr


Cabless Bracket












Onze Certificeringen

NDAA  FIPS140-2  TüV/GS   IS09001   CE  FCC  EAC  DGüV  LGC  VDS  TAPA
